| Product Parameter |
Parameter Description |
| Feature |
Fail Safe |

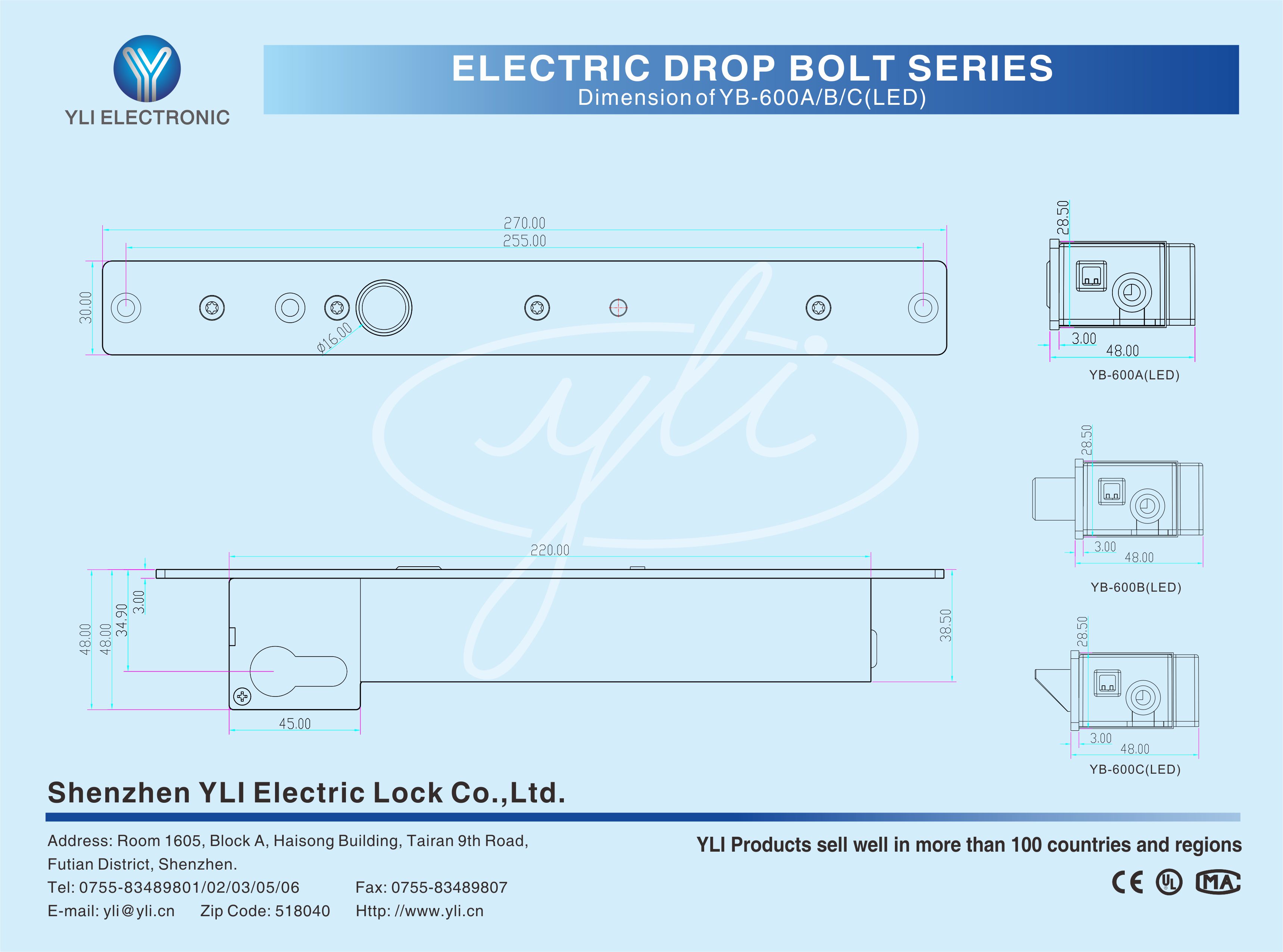

| Lock Body |
270Lx30WX48H(mm) |
| Magnetic Plate |
100Lx25Wx3H(mm) |
| Bolt |
16(length)*16(diameter)(mm) |
| Voltage |
DC12V |
| Start Current |
1200mA |
| Standby Current |
200mA |
| LED |
Light on indicates locked, light off indicates unlocked |
| Autolock Time Delay |
0,3,6,9sec |
| Signal Output |
Lock signal(NO/NC/COM)(need order door signal) |
| Static strength test |
approx. 1400kg (third-party report) |
| Induction Distance |
Within 8mm |
| Operating temp |
-30℃～+60℃(-22~140℉) |
| Operating Humidity |
0～90%(non-condensing) |
| Special Designed |
Tested to 500000 operations |
| Face place material |
304 stainless steel, wire draw finishing |
| Suitable For |
Wooden door , metal door , fireproof door , glass door |
| Weight |
1.6kg |
| Certification |
MA CE-EMC CE-LVD FCC-VOC REACH WEEE |
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Special photoelectricity control,three steps current application.
Long Life with 500000 cycles.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Autolock Time Delay: 0,3,6,9sec.
Door statue signal output contact NC,NO,COM
Double protection for loading current.
Auto-relock if no Action within 5 secs.
Photoelectricity Control,Low Temperature，
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology,prevent the machanical defect.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
| Packing Quantity(PCS/CTN) |
10 |
| Packing Size(L*W*H)(cm) |
52*29*12 |
| Gross Weight(KG) |
16.00 |
